| Model Number : | 4BT3.9 0 460 424 289 3963961 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 PCS |
| Delivery Time : | 1-7Work Days |

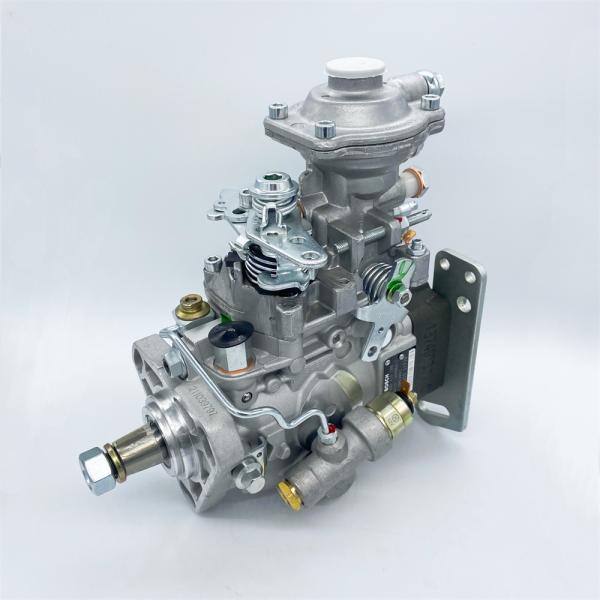

4BT3.9 Excavator Fuel Pump 0460424289 Fuel Injection Pump 3963961 Engine Parts
Specification
| Part Number | 0 460 424 289 3963961 |
| TYPE | Engine Parts |
| Engine Model | 4BT3.9 |
| Part Name | Fuel Pump / Fuel Injection Pump |
| Material | Metal |
| Colour | Silver White |
| Quality | 100% Detection |
| Size | Standard |
| Condition | New |
| Parts Availability | In Stock |
Fuel Pump Related Parts
| Part Number | Part Name | Qty |
| 2460283001 | SHAFT SEALING RING | 1 |
| 1467030310 | SUPPLY PUMP | 1 |
| 1467030308 | SUPPLY PUMP | 1 |
| 1460134317 | SUPPORT RING | 1 |
| 1463429300 | TORX FLAT-HEAD SCREW | 2 |
| 1466100401 | DRIVE SHAFT | 1 |
| 1460023302 | WOODRUFF KEY | 1 |
| 1460056302 | BUFFER | 2 |
| 1466317301 | TOOTHED GEAR | 1 |
| 2460113002 | SLIDING DISK | 1 |
| 1460232328 | ROLLER RING | 1 |
| 2463100002 | BEARING PIN | 4 |
| 2460300005 | ROLLER | 4 |
| 2460120013 | FRICTION WASHER | 4 |
| 1463103316 | ADJUSTING PIN | 1 |
| 1463120359 | RETAINING PIN | 1 |
| 1461310300 | RETAINING BRACKET | 1 |
| 2460140021 | CROSS DISK | 1 |
| 1466110688 | CAM PLATE | 1 |
| 1461074338 | SEALING PLATE | 1 |
| 1463104690 | TIMING-DEVICE PISTON | 1 |
| 1463218312 | SLIDING PIECE | 1 |
| 1460144302 | SHIM RING | 1 |
| 1464618396 | COMPRESSION SPRING | 1 |
| 1461074338 | SEALING PLATE | 1 |
| 1467414495 | SOLENOID-OPERATED VALVE | 1 |
| 1463414344 | TORX FILLISTER SCREW | 2 |
| 1461074330 | COVER PLATE | 1 |
| 2463414001 | TORX FILLISTER SCREW | 2 |
| 1461074339 | SEALING PLATE | 1 |
| 1468374034 | HYDRAULIC HEAD | 1 |
| 2460210012 | O-RING | 1 |
| 1460105305 | GASKET | 4 |
| 1463370476 | FITTING | 4 |
| 1463414361 | MICROENCAPSULATED SCREW | 2 |
| 1463414312 | TORX FILLISTER SCREW | 2 |
| 1460210008 | O-RING | 2 |
| 1467135075 | MANIFOLD-PRESSURE COMP. | 1 |
| 1463162257 | SHAFT | 1 |
| 1200101640 | SHIM | 1 |
| 1461901489 | CONTROL LEVER | 1 |
| 2916699132 | SPRING LOCK WASHER, DIN 128 - A6-FSt | 1 |
| 1460363300 | HEADED BUSH | 1 |
| 1461015302 | GASKET | 1 |
| 1461907316 | FULCRUM LEVER | 1 |
| 2916012017 | PLAIN WASHER, DIN 433 - 10,5-160 HV | 1 |
| 1463452313 | SLOTTED SHOULDER SCREW | 2 |
| 1460105307 | GASKET | 2 |
| 1464613611 | COMPRESSION SPRING | 2 |
| 1463300304 | HEXAGON NUT | 1 |
| 1460210313 | O-RING | 1 |
| 1461030343 | SHIM PLATE, 0,95 MM | 1 |
| 1466317319 | FLYWEIGHT ASSEMBLY | 1 |
| 1460100356 | SHIM RING, 1,60 MM | 1 |
| 1460422673 | SLIDING SLEEVE | 1 |
| 1460508309 | SEALING CAP | 1 |
| 1463203907 | SELECTION GROUP PLUG | 1 |
| 1463123363 | RETAINING PIN | 1 |
| 1464610302 | COMPRESSION SPRING | 1 |
| 1464650433 | EXTENSION SPRING | 1 |
| 2910142207 | HEX-SOCKET-HEAD CAP SCREW, ISO 4762 - M6x35-8.8 | 4 |
| 1460210349 | O-RING | 1 |
| 2463452001 | SCREW PLUG | 1 |
| 2463461001 | BLEEDER SCREW | 1 |
| 1460225081 | O-RING | 1 |
| 1460225082 | O-RING | 1 |
| 1460362023 | CONTROL VALVE | 1 |
| 2467413025 | OVERFLOW VALVE | 1 |
| 2916710607 | FLAT SEAL RING, DIN 7603 - A12x15,5-Cu | 3 |
| 2463317004 | CAP NUT | 1 |
| 1460591315 | PROTECTIVE CAP | 1 |
| 2410508007 | PROTECTIVE CAP | 1 |
| 1410407004 | PROTECTION SLEEVE | 1 |
| 2464633002 | COMPRESSION SPRING | 1 |
| 1460500307 | SPRING SEAT | 1 |
| 2915021004 | HEXAGON NUT, DIN 934 - M14x1,5-8-A | 1 |
| 2916699137 | SPRING LOCK WASHER, DIN 128 - A14-FSt | 1 |
| 1900508202 | PROTECTIVE CAP | 1 |
| 1464651463 | COILED SPRING | 1 |
| 1464477302 | BLADE TERMINAL | 1 |
| 1463314306 | FLANGE NUT | 1 |
| 1461021353 | SUPPORT PLATE | 1 |
| 1463414362 | MICROENCAPSULATED SCREW | 2 |
| 1463414305 | TORX FILLISTER SCREW | 2 |
| 330001042 | PUSHING ELECTROMAGNET | 1 |
| 1464477304 | BLADE TERMINAL | 1 |
| 1463314306 | FLANGE NUT | 1 |
| 1460105312 | FLAT SEAL RING | 1 |
| 1463457320 | TUBE FITTING | 1 |
| 2910142203 | HEX-SOCKET-HEAD CAP SCREW, ISO 4762 - M6x25-8.8 | 2 |
| 1461900503 | CONTROL LEVER | 1 |
| 1463433313 | WASHER-AND-SCREW ASSEMBLY | 1 |
| 1461900580 | CONTROL LEVER | 1 |
| 1460113301 | INTERMEDIATE DISC | 1 |
| 1464651430 | COILED SPRING | 1 |
| 1460522328 | SPRING SEAT | 1 |
| 1460522304 | SPRING SEAT | 1 |
| 1463386301 | VENT FITTING | 1 |
| 1460558303 | PROTECTIVE CAP | 1 |
| F002D11455 | HOLLOW BOLT | 3 |
| 2911222700 | HOLLOW BOLT | 3 |
| 1460105313 | FLAT SEAL RING | 6 |
| 1460793416 | CONNECTING PIPE | 1 |
|
|
