| Model Number : | EC330B EC360BLC EC380D VOE14589140 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, |
| Supply Ability : | 500Set |
| Delivery Time : | 1-7 Work Days |
EC330B EC360BLC EC380D Excavator Arm Seal Kit VOE14589140 Parts
Specification
| Product Name | Oil Seal Kit for Excavator Hydraulic Cylinder |
| Application | Excavator EC330B EC360BLC EC380D |
| Part Number | VOE14589140 |
| Material | PTFE + PU |
| PTFE Fillers | Bronze and virgin PTFE |
| Propeties | SKF Reinforced Type, Not Easy To Leak Oil |
| Color | White + Black |
| Sizes | 115MM / 175MM |
| Hardness | 30 - 90 |
| Feature | Oil-resistant , heat resistant , Durable |
The following seal kits we also can supply
Main pump seal kit; Hydraulic pump seal kit; Regulater valve seal
kit;
Plunger pump seal kit; O ring box; Gear pump seal repair kit;
Travel motor seal kit; Breaker hammer seal kit; Swing motor seal
kit; Lever seal kit; Pilot valve seal kit/PPC seal; Adjuster seal
kit;
Center joint seal kit; Turing joint seal kit; Servo valve seal kit;
Boom cylinder seal kit; Arm cylinder seal kit; Bucket cylinder seal
kit; Control valve seal kit.

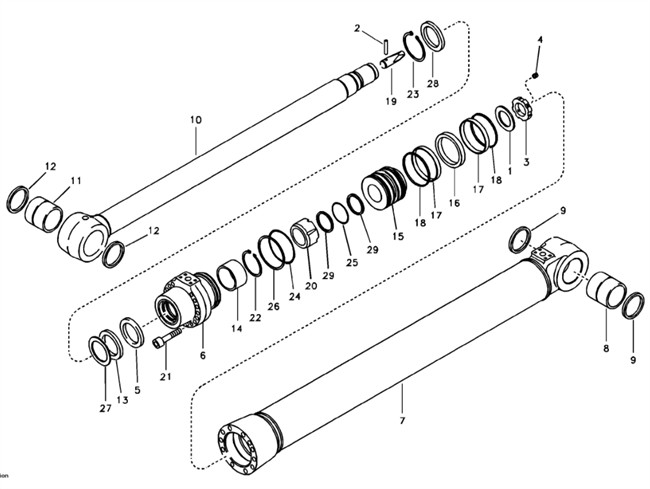

Parts Drawing
| Pos. | Part No | Qty | Parts name |
| VOE14535416 | [1] | Dipper Arm Cylinder | |
| VOE14563816 | [1] | Hydraulic cylinder | |
| 1 | VOE14530667 | [1] | Washer |
| 2 | SA1146-05850 | [1] | Pin |
| 3 | VOE14535414 | [1] | Lock nut |
| 4 | VOE14526459 | [1] | Screw |
| 5 | SA1146-08150 | [1] | Buffer Ring |
| 6 | VOE14503564 | [1] | Head |
| 7 | [1] | Tube | |
| 8 | SA1046-04000 | [1] | Bushing |
| 9 | VOE14560209 | [2] | Seal |
| 10 | VOE14535417 | [1] | Rod |
| VOE14550682 | [1] | Rod | |
| 11 | VOE14517938 | [1] | Bushing |
| 12 | VOE14560209 | [2] | Seal |
| 13 | SA9567-21150 | [1] | Back-up ring |
| 14 | SA9612-11545 | [1] | Bearing |
| 15 | VOE14535420 | [1] | Piston |
| 16 | VOE14503566 | [1] | Seal |
| 17 | VOE14503567 | [2] | Ring |
| 18 | VOE14503568 | [2] | Seal |
| 19 | VOE14509074 | [1] | Cushion |
| 20 | VOE14509076 | [1] | Cushion |
| 21 | VOE947695 | [14] | Hex. socket screw |
| 22 | SA9557-10500 | [1] | Retaining ring |
| 23 | SA9556-11500 | [1] | Retaining ring |
| 24 | SA9511-12160 | [1] | O-ring |
| 25 | VOE990643 | [1] | O-ring |
| 26 | SA9566-31600 | [1] | Back-up ring |
| 27 | SA9563-21150 | [1] | Seal |
| 28 | SA9564-21150 | [1] | Seal |
| 29 | SA9566-31020 | [2] | Back-up ring |
| 100 | VOE14589140 | [1] | Sealing kit |
